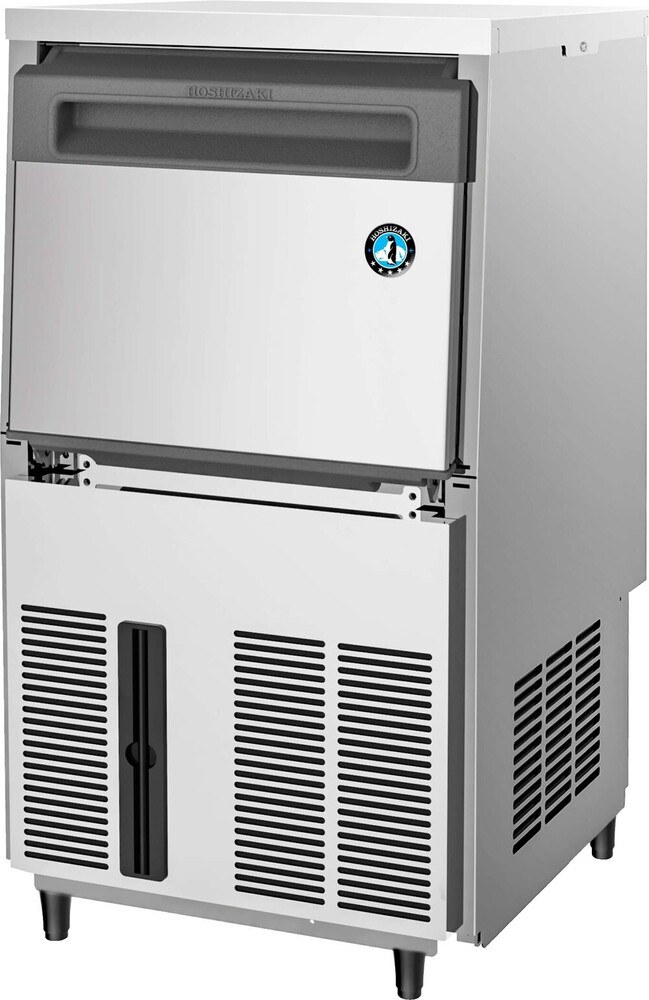

Ice Machine IM-130A

12000 INR/Unit

Request to Call Back Send Inquiry

Ice Machine IM-130A Price And Quantity

Ice production per 24hr (15mm)	(AT10C/WT10C)	126 kg
	(AT21C/WT15C)	125 kg
	(AT32C/WT21C)	100 kg
Ice production per cycle (AT32C/WT21C)	Approx. 1.8 kg / 80 pcs Freeze cycle time per cycle 27 minutes
Water consumption per 24hr (AT32C/WT21C)	0.19mï = 1.9 litres / 1 kg ice
Voltage	198V - 254V
AC supply voltage	1 / 220-240V
Frequency	50Hz
Electrical consumption (AT32C/WT21C)	630W
Amperage / starting amperage	2.7A / 25A
Ambient temperature	1C - 40C
Water supply	5C - 35C / 0.07 - 0.78Mpa / 7.25-116 PSI
Refrigerant charge	R404a / 350g
Heat rejection (AT32C/WT21C)	1410W 1213 kcal/h
Ice dimension (L x W x H)	28 x 28 x 32 mm (Standard size)
	21 x 21 x 14 mm (21 mm size)
Dimension (L x W x H)	660 x 570 x 1200 mm
Packing dimension (L x W x H)	760 x 680 x 1379 mm
Net weight	79 kg
Gross weight	98 kg
